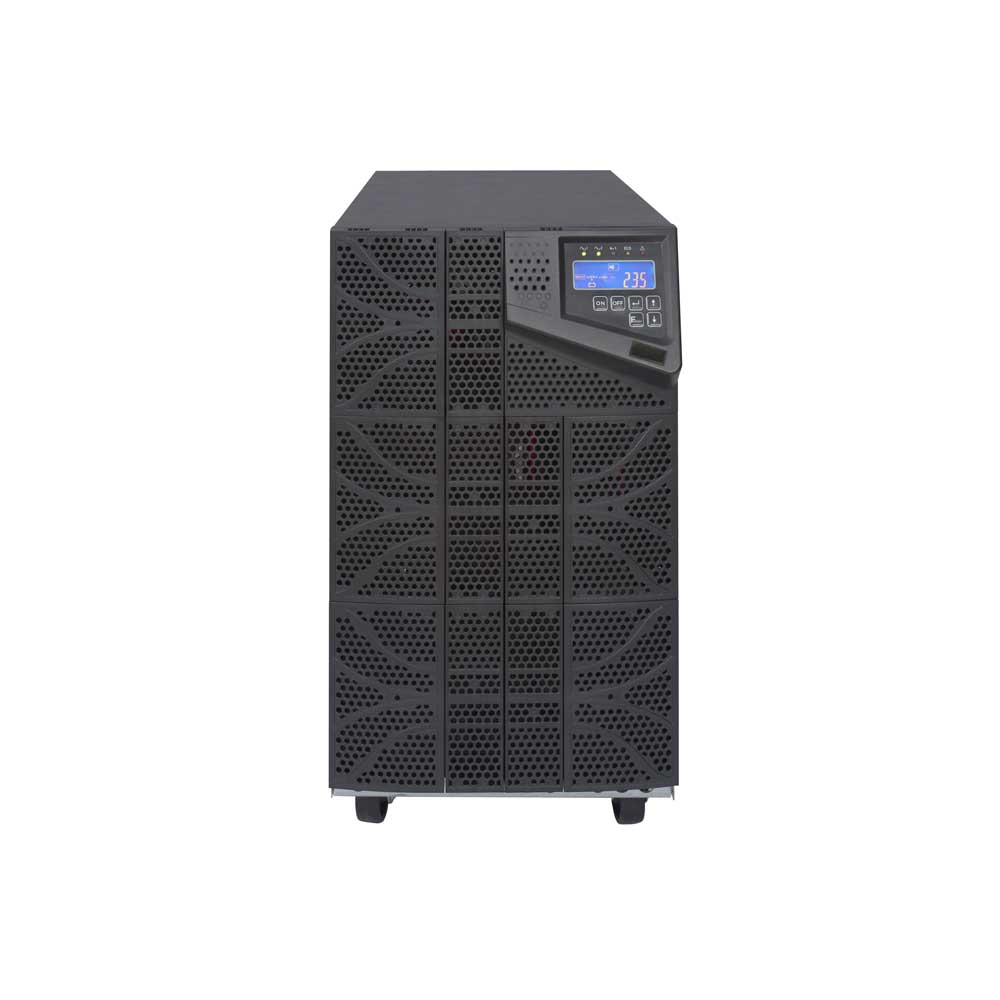

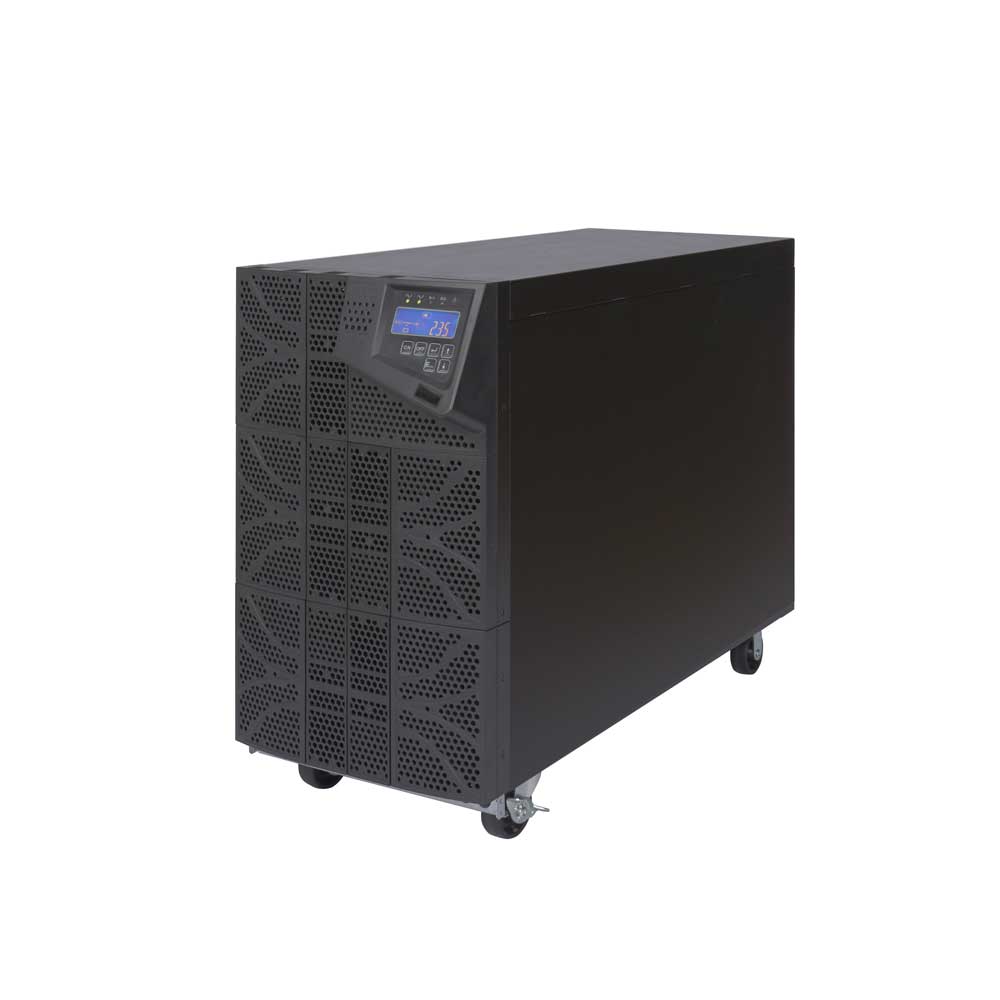

MS III TOWER
MORE POWER, EFFICIENCY AND REDUNDANCY
6000VA ~ 10000VA
MARS III tower features Power Factor 1 on all ratings, delivering 13% more active power than its competitors for the same kVA. And with 4 units in parallel also redundancy is at the highest! MARS III is the third generation of Single Phase Online UPS from Ablerex. Features, options, accessories and manuals are available in the boxes below. Here you can find the segments in which this product is perfect for its performance and features.
Resources:
Features
- Maximum power availability: kVA=kW.
- Up to 4 units in parallel, possibility of 3 + 1 redundancy with parallel kit.
- Low cost of ownership: high VFI efficiency and ECO functionality minimize energy consumption.
- Intuitive monitoring software, free downloadable and compatible with major operating systems, for: function control, diagnostics, controlled shutdown of loads in case of failure.
- Possibility of starting in the absence of the grid (cold start).
- Wide input voltage and frequency ranges that reduce battery tripping while increasing expected battery life and efficiency.
- Flexible battery configuration to best suit your range needs.
- Display of accurate calculation of remaining range on the display.
- Hot-swappable batteries: batteries can be replaced while the UPS is running.
- Firmware easily upgraded to implement new functions.
- EPO and On/Off even remotely.
- Manually activated 6-step function test.
- RS232 and USB port, slot for optional communication card.
Main options:
- Boards: RS485, SNMP/web and dry contact relay board to send UPS status to various systems e.g., BMS, PLC, SCADA and AS400.
- Parallel kit.

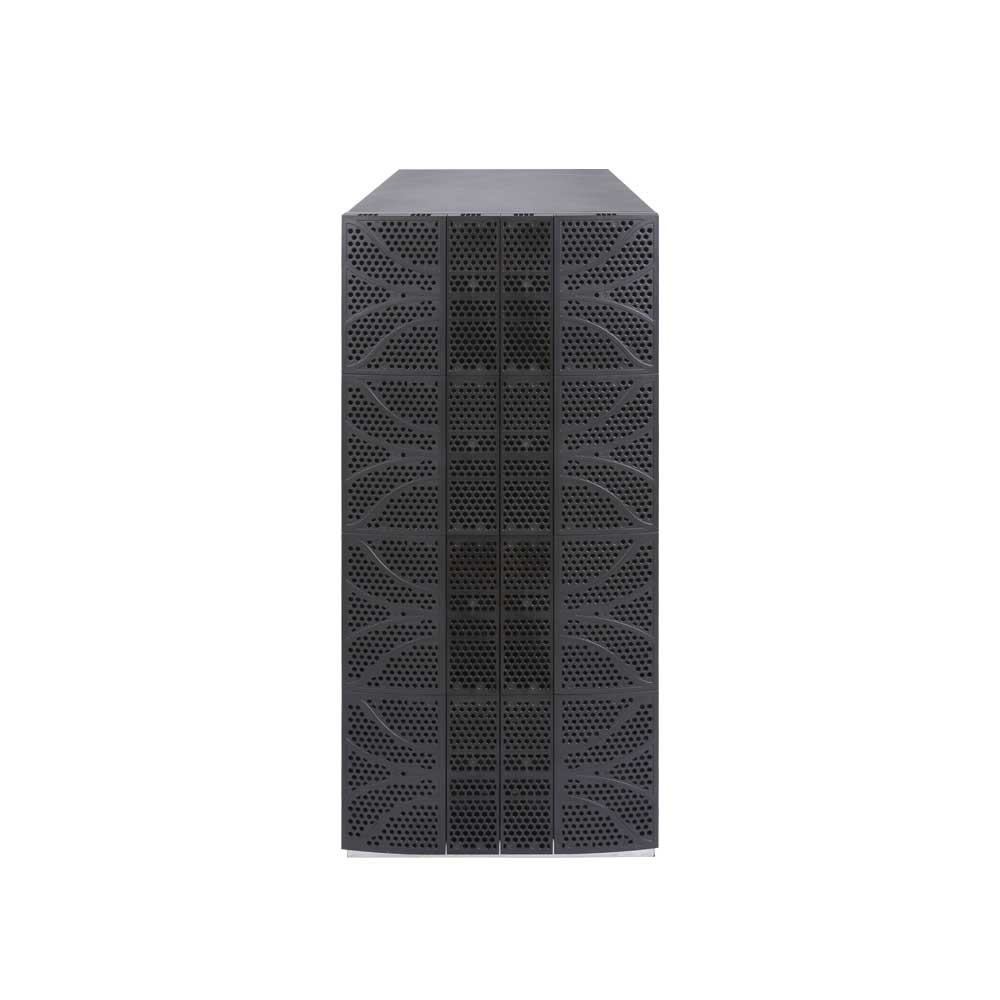

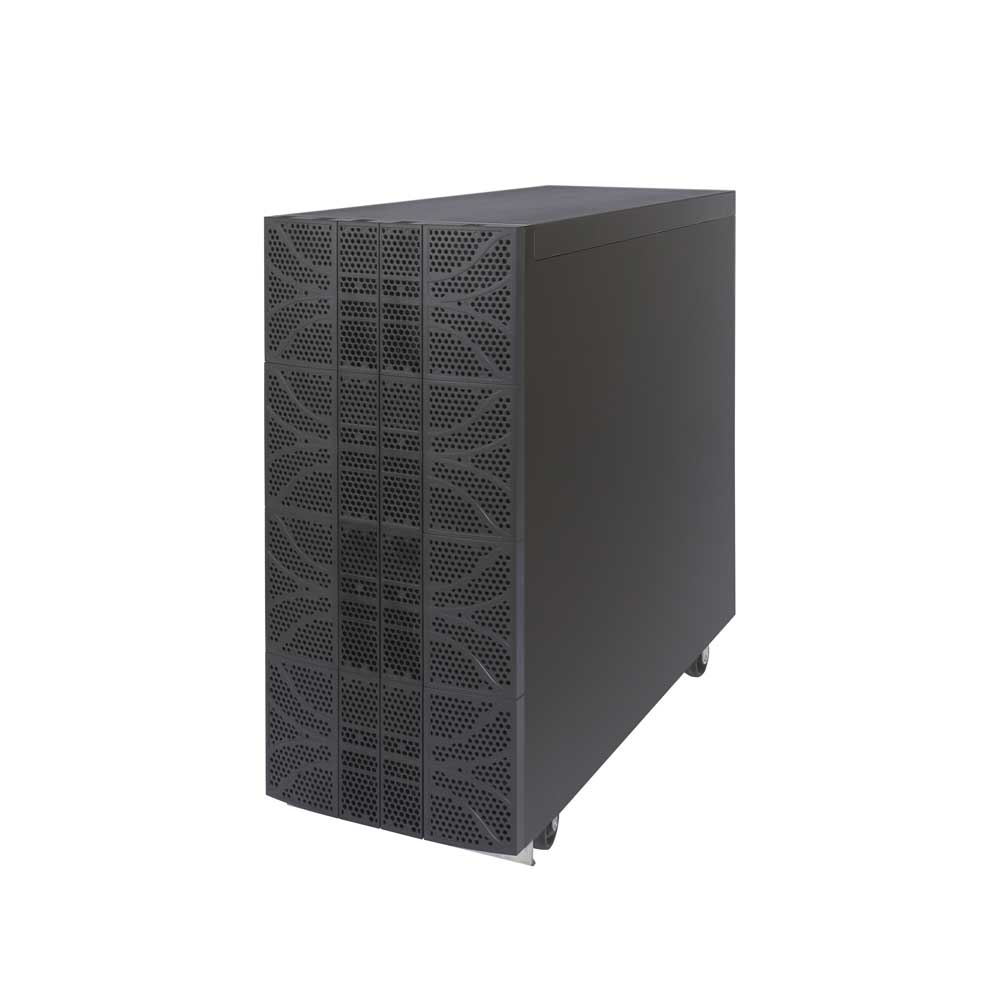

- External battery cabinets.
- External manual bypass with additional sockets.
Accessories
Communication cards
Remote monitoring and management of UPS systems and other safety components.
DY801 Mini
Mini SNMP Card.
RS485 Mini
Mini RS485 card.
External SNMP card
Net Agent 9 mini - External (DY-522 series).
Internal SNMP card
Net Agent 9 internal (CY-504 series).
Internal SNMP card 3P
Net Agent 9 Internal 3 port (BY-506B series).
DCE-C
Programmable card with dry contacts with client software included.
PDU
Per assicurare l’alimentazione a più apparati.
ESB-219 (PVO-PDM32)
External socket box with switch (9 10A IEC , and five 6A IEC).
External bypass
The External by-pass allow safe maintenance without shutdown the load
Rack-BP_PDU-50 (MPDU 250)
External manual bypass with additional 50A socket (4 x 16A IEC and 8 x10A IEC)
Rail kit
Per il montaggio a rack.
RAIL KIT
Adjustable guide kits for rack mounting.
Isolation transformers
In a UPS system, isolation transformers transfer AC current to connected equipment while isolating them from the power source. This protects against electric shock and suppresses harmful electrical noise.
CHG1000B
External 1000W charger for tower/rack version for 15/20k - 4x parallelable.
Contact us for further information
