ODIN and ODIN HARSH RT 1000-3000 VA UPS
When you need to prevent a service outage and ensure safety and continuity in extreme conditions, you need a robust, highly reliable UPS.
The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS is ideal for compact rack mounting due to its shallow depth (43 cm). Equipped with lockable sockets, they are easily converted from rack to tower.
Applications:
- All applications in harsh climate areas
- Industrial applications
- IT and telecoms (transmitting-and-receiving stations)
- Underground transport
- Traffic control
- Wind farms
- Electromedical equipment
Special applications
Medium voltage substations and control cabinets (PLC)
Whenever you need a battery backup, Ablerex has a solution. With Ablerex firmware, you can be sure that ODIN HARSH RT UPS single-phase online 1000 – 3000 VA always has enough battery reserve to be turned back on and power the load.
- Online double conversion technology (VFI) from 1000 VA to 3000 VA with a power factor of 0.9.
- Versatile: the display panel can be turned to transform the rack into a tower.
- Easy to install.
- Low running costs: the high efficiency VFI and ECO features minimise energy consumption.
- High uptime expandability.
- User-friendly monitoring software can be downloaded free and is compatible with the principle operating systems, for: monitoring functions, diagnostics, controlled shutdown of loads in the event of blackouts.
- High overload handling capacity.
- Constant voltage constant frequency (CVCF) output mode for maximum protection of particularly sensitive loads.
- Wide input voltage and frequency ranges reduce battery switching, thereby increasing battery life and efficiency.
- Option to set the percentage residual battery charge from 3% to 100% of the available capacity.
- The accurately calculated residual operating time is shown on the display.
- Two sets of IEC sockets that can be programmed separately.
- Cold start option without mains power.
- The firmware can be upgraded easily to implement new features.
- EPO or On/Off, with remote option.
- RS232 and USB ports, slots for optional communication cards.
Specifically for ODIN HARSH
- Built to guarantee efficiency and performance from -10°C to 55°C.
- Batteries designed for extreme temperatures.
Resources:
Additional information
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS guarantees consistent performance and near constant, uninterrupted power delivery with no transfer times, making it the best choice for any critical application in extreme conditions (-10 °C to + 55 °C).
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS, thanks to its reduced depth (43 cm) is particularly versatile as they are also suitable for particularly compact racks.
- Low running costs of the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS are guaranteed by features able to minimize energy consumption.
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS is extremely versatile the display panel can be easily turned to transform the rack into a tower.
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS makes it easy to expand uptime by simply adding external battery cabinets and additional battery charges.
- With the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS VA, there is no risk of accidental disconnections thanks to lockable sockets.
- With the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS in case of a network failure, you can decide to give continuity only to specify loads guarantee to them a longer runtime.
- The connected devices are always protected, and the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS can be started in the absence of mains power.
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS is suitable for particularly sensitive loads (e.g. electro-medical equipment, mass spectrometers, and analyzers for forensic analysis), and it has no impact on generator consumption.
- The presence of the operator is not necessary for automatic restart after a prolonged blackout, the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS reactivates the load protected, and the software can also allow to set up automatic shutdown of the device connected.
- Safe: by an emergency power off switch the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS load can be immediately disconnected from the utility power even remotely.
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS guarantees monitoring and management without cost: orderly, automatic closure of the applications and operative system, and shutdown of all devices can be easily set up via free software available for the main operatives systems.
- The ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS is able to dialog with any system thanks to various communication options: RS232 and USB built-in and, additional available optional cards provided with the software (SNMP, RS485, relay card with dry contact).
- Low cost of ownership of the ODIN and ODIN HARSH RT 1000-3000 VA UPS single-phase online UPS S due to longer expected battery life thanks to all advanced battery management features.
Accessories
Communication cards
Remote monitoring and management of UPS systems and other safety components.
DCE-C
Programmable card with dry contacts with client software included.
SNMP ABL (CY504B)
Network card for data transmission, UPS control, and alarm reception via email with SNMP protocol. Client software included.
SNMP ABL E (DY522)
External network card for sending data, UPS controlling and receiving alarms via email with SNMP protocol. Client software is included.
SNMP GEN (CS141BSC)
Generex network card for UPS controlling, sending data and reception of alarms via email via SNMP protocol. RCCMD client software license included
SNMP GEN P (CS141SC)
Generex 3-port network card for UPS controlling and receiving alarms via SMS or/and email. Includes network interface for sending data with SNMP protocol, port for environmental monitoring sensor connection or RS232 adapter (ModBus or GPRS/GSM modem) and port connecting alarm contacts. RCCMD client software included.
RS485 Card
Card for data exchange via RS-485 via ModBus protocol.
External bypass
The External by-pass allow safe maintenance without shutdown the load
Rack-BP_PDU-16 (RacPDU-216G)
External manual bypass with additional sockets (6 x 10A IEC and 2 x 16A IEC)
Rack-BP_PDU-50 (MPDU 250)
External manual bypass with additional 50A socket (4 x 16A IEC and 8 x10A IEC)
MTBS-60/MTBS-120/MTBS-200
External maintenance bypass panel 60A, 12A and 200A

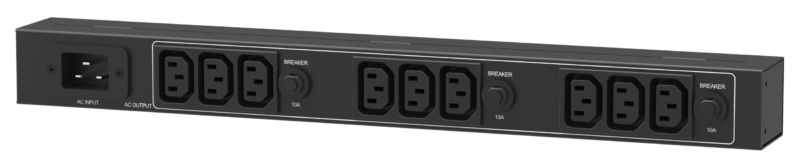

PDU
Per assicurare l’alimentazione a più apparati.
ESB-216
External socket box with switch (Two 16A IEC, and Eight 10A IEC).
ESB-218
External socket box with switch (Four 16A IEC).
ESB-219 (PVO-PDM32)
External socket box with switch (9 10A IEC , and five 6A IEC).

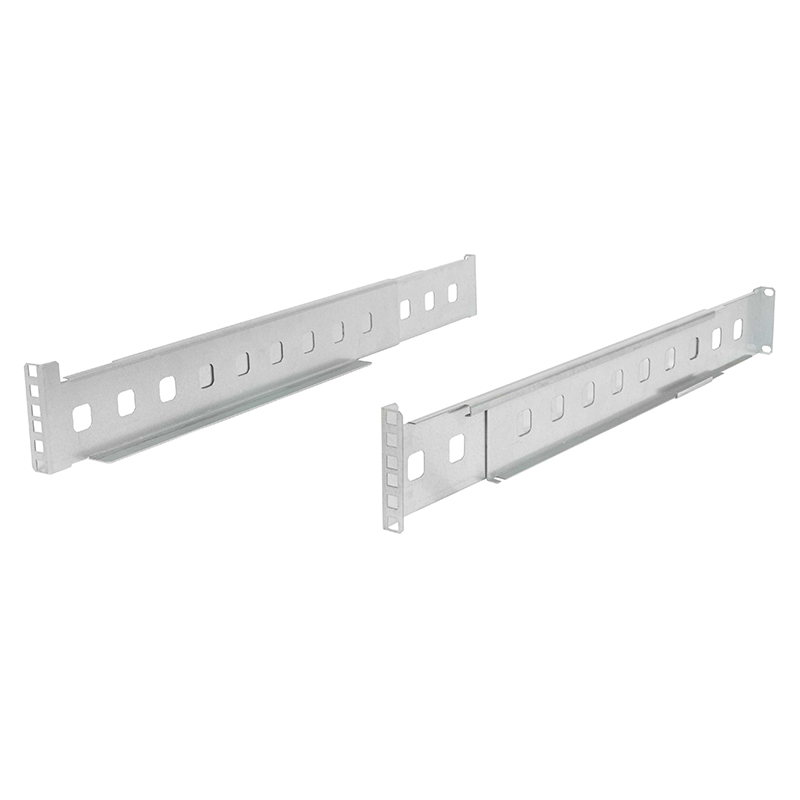

Rail kit
Per il montaggio a rack.
RAIL KIT
Adjustable guide kits for rack mounting.
Contact us for further information
