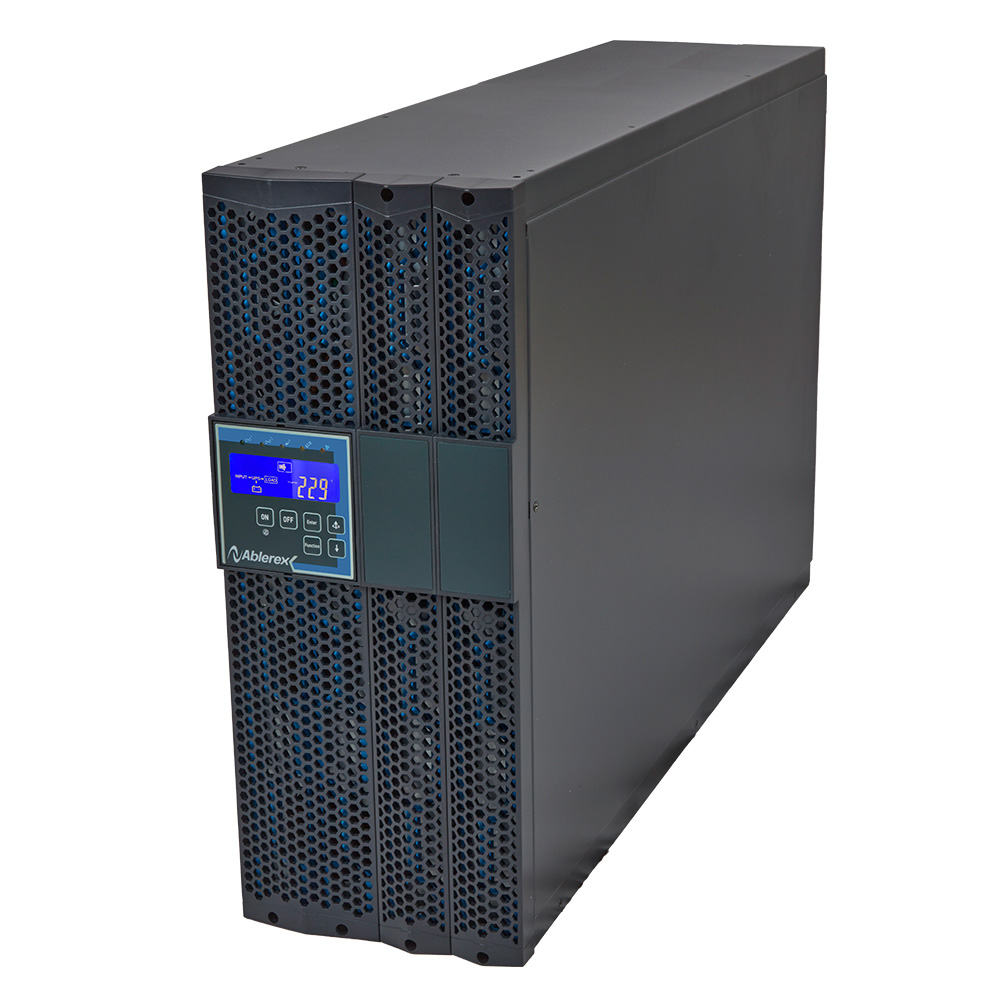

MARS RT 6000-10000 VA UPS
Single-phase, parellable, online UPS provides higher active power (kVA=KW) and is ideal for all critical applications requiring increased uptime and expansion and/or redundancy possibilities.
Applications:
- Critical IT applications
- Server rooms and micro data centres
- Network, VOIP, and telecommunications equipment
- Video surveillance, security and IoT devices
- Electromedical equipment
- Industrial applications
Strengths
Thanks to parallel operation expandability and redundancy are guaranteed
- Purchasing the parallel kit enables this feature, allowing the load to be shared by more than one UPS.
- Up to 4 units can be connected in parallel for a total power of 40 kVA.
- Load always protected thanks to the option of 3+1 redundancy (up to 30 kVA); in the event of a faulty UPS, it is replaced by the fourth module.
- No single point of failure thanks to the communication bus loop connection.
Control and management software
USB or RS232 serial port and PowerMaster software
The main features of the PowerMaster software are:
- Installation and configuration via USB or RS232 serial port;
- Orderly, automatic closure of the applications and operating system, even if the user is not there;
- Monitoring and power supply event reporting;
- Transmission of alarms for the most common power supply problems and
notification of system shutdown by email and text message; - Automatic testing of UPS and battery;
- Available for Microsoft, MAC, and Linux.
Resources:
Additional information
- The MARS RT 6000-10000 VA single-phase online UPS offers maximum protection and power availability. Ideal for any critical applications that require greater uptime and expandability and /or redundancy possibility
- Pay as you grow: 4 units of MARS RT 6000-10000 VA single-phase online UPS can be installed in parallel for a total power of 40 kVA and the load can be always protected thanks to redundancy configuration 3+1 up to 30 kVA; in case an event of a UPS unit faulty occurred it is replaced by the fourth model.
- Low running costs of MARS RT 6000-10000 VA single-phase online UPS are guaranteed by features able to minimize energy consumption

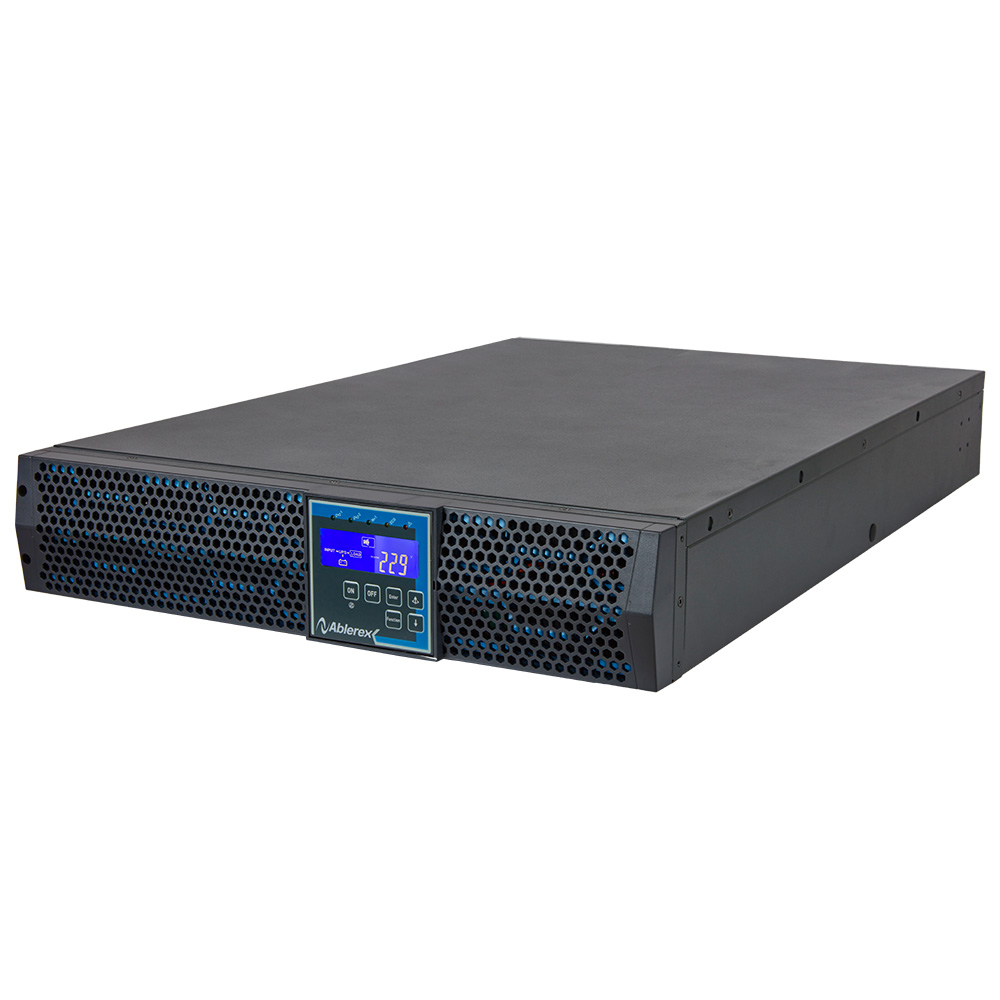

- The MARS RT 6000-10000 VA single-phase online UPS RT is extremely versatile the display panel can be easily turned to transform the rack into the tower.
- Easy to expand uptime guaranteeing load protection, simply adding external battery cabinets and additional battery charges. The batteries can be replaced or added while the MARS RT 6000-10000 VA single-phase online UPS is running
- In case of network failure with MARS RT 6000-10000 VA single-phase online UPS you can decide to give continuity only to specify loads to guarantee them a longer runtime
- The connected devices are always protected with MARS RT 6000-10000 VA single-phase online UPS, and the UPS can be started in the absence of mains power
- Suitable for particularly sensitive loads e.g. electro-medical equipment, mass spectrometers, analyzers for forensic analysis, MARS RT 6000-10000 VA single-phase online UPS has no impact on generator consumption.
- With MARS RT 6000-10000 VA single-phase online UPS the presence of the operator is not necessary for automatic restart after a prolonged blackout reactivates the load protected, the software can also allow to set up the automatic shutdown of the device connected.
- Max safety: by an emergency power off switch the MARS RT 6000-10000 VA single-phase online UPS load can be immediately disconnected from the utility power even remotely
- By executing a predefined sequence of operations, users can validate various functionalities of MARS RT 6000-10000 VA single-phase online UPS, identify potential issues or malfunctions, and ensure the system is working as expected. This test enhances troubleshooting capabilities, ensures proper functioning before critical operations, and promotes proactive maintenance, leading to increased efficiency, reliability, and safety.
- The MARS RT 6000-10000 VA single-phase online UPS provides increased reliability and peace of mind to users thanks to the overload capability. This feature protects sensitive components from electrical overload, ensures equipment longevity, and reduces the risk of data loss or system failure during unforeseen power fluctuations
- The MARS RT 6000-10000 VA single-phase online UPS guarantees easy installation and maintenance
- Monitoring and management with the MARS RT 6000-10000 VA single-phase online UPS is without cost: orderly, automatic closure of the applications and operative system, and shutdown of all devices can be easily set up via free software available for the main operatives systems.
- The MARS RT 6000-10000 VA single-phase online UPS is able to dialog with any systems thanks to various communication options: RS232 and USB built-in and, additional available optional cards provided with the software (SNMP, RS485, relay card with dry contact)
- The longer expected battery life of The MARS RT 6000-10000 VA single-phase online UPS thanks to all advanced battery management features, guarantee a low cost of ownership
Accessories
Communication cards
Remote monitoring and management of UPS systems and other safety components.
DCE-C
Programmable card with dry contacts with client software included.
SNMP ABL (CY504B)
Network card for data transmission, UPS control, and alarm reception via email with SNMP protocol. Client software included.
SNMP ABL E (DY522)
External network card for sending data, UPS controlling and receiving alarms via email with SNMP protocol. Client software is included.
SNMP GEN (CS141BSC)
Generex network card for UPS controlling, sending data and reception of alarms via email via SNMP protocol. RCCMD client software license included
SNMP GEN P (CS141SC)
Generex 3-port network card for UPS controlling and receiving alarms via SMS or/and email. Includes network interface for sending data with SNMP protocol, port for environmental monitoring sensor connection or RS232 adapter (ModBus or GPRS/GSM modem) and port connecting alarm contacts. RCCMD client software included.
RS485 Card
Card for data exchange via RS-485 via ModBus protocol.
External bypass
The External by-pass allow safe maintenance without shutdown the load
Rack-BP_PDU-16 (RacPDU-216G)
External manual bypass with additional sockets (6 x 10A IEC and 2 x 16A IEC)
Rack-BP_PDU-50 (MPDU 250)
External manual bypass with additional 50A socket (4 x 16A IEC and 8 x10A IEC)
MTBS-60/MTBS-120/MTBS-200
External maintenance bypass panel 60A, 12A and 200A
PDU
Per assicurare l’alimentazione a più apparati.
ESB-216
External socket box with switch (Two 16A IEC, and Eight 10A IEC).
ESB-218
External socket box with switch (Four 16A IEC).
ESB-219 (PVO-PDM32)
External socket box with switch (9 10A IEC , and five 6A IEC).
Isolation transformers
In a UPS system, isolation transformers transfer AC current to connected equipment while isolating them from the power source. This protects against electric shock and suppresses harmful electrical noise.
TRAFO6/TRAFO10
Isolation transformer for 6000 VA and for 10000 VA.
Rail kit
Per il montaggio a rack.
RAIL KIT
Adjustable guide kits for rack mounting.
Contact us for further information
