POWER QUALITY DEVICES

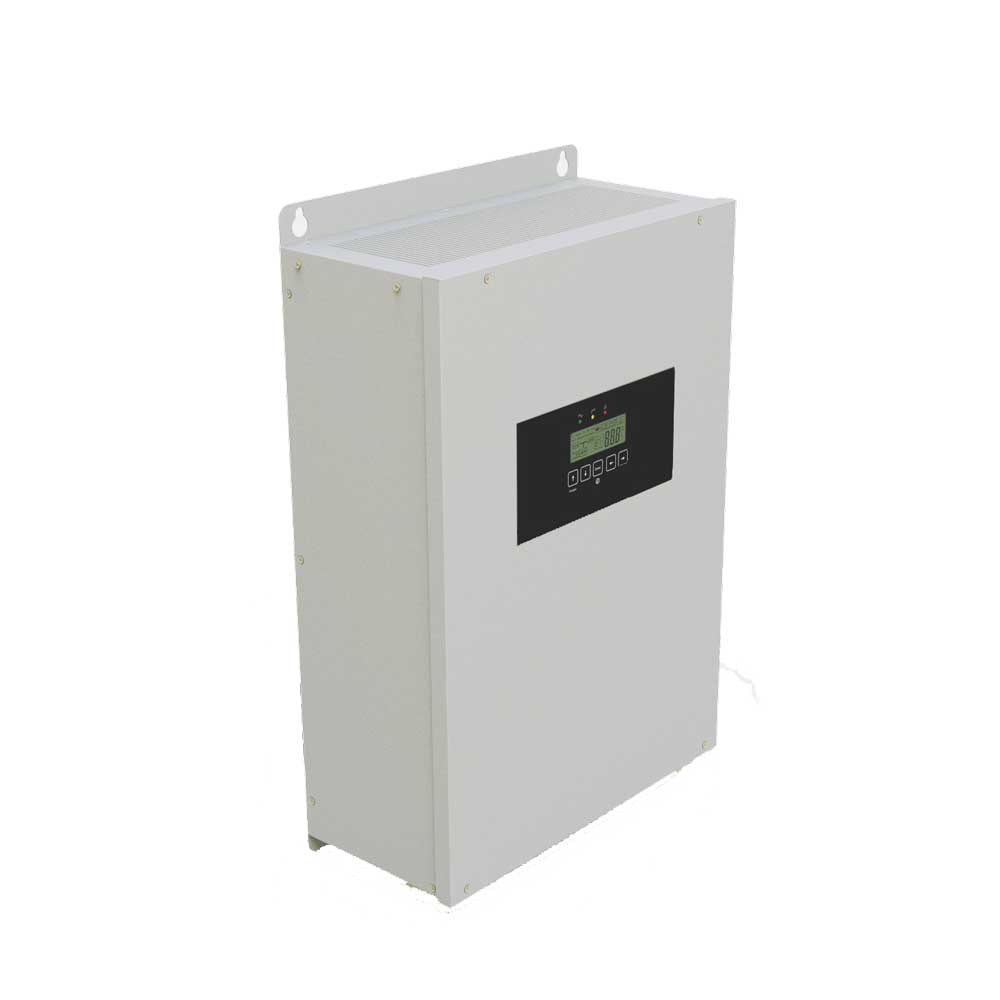

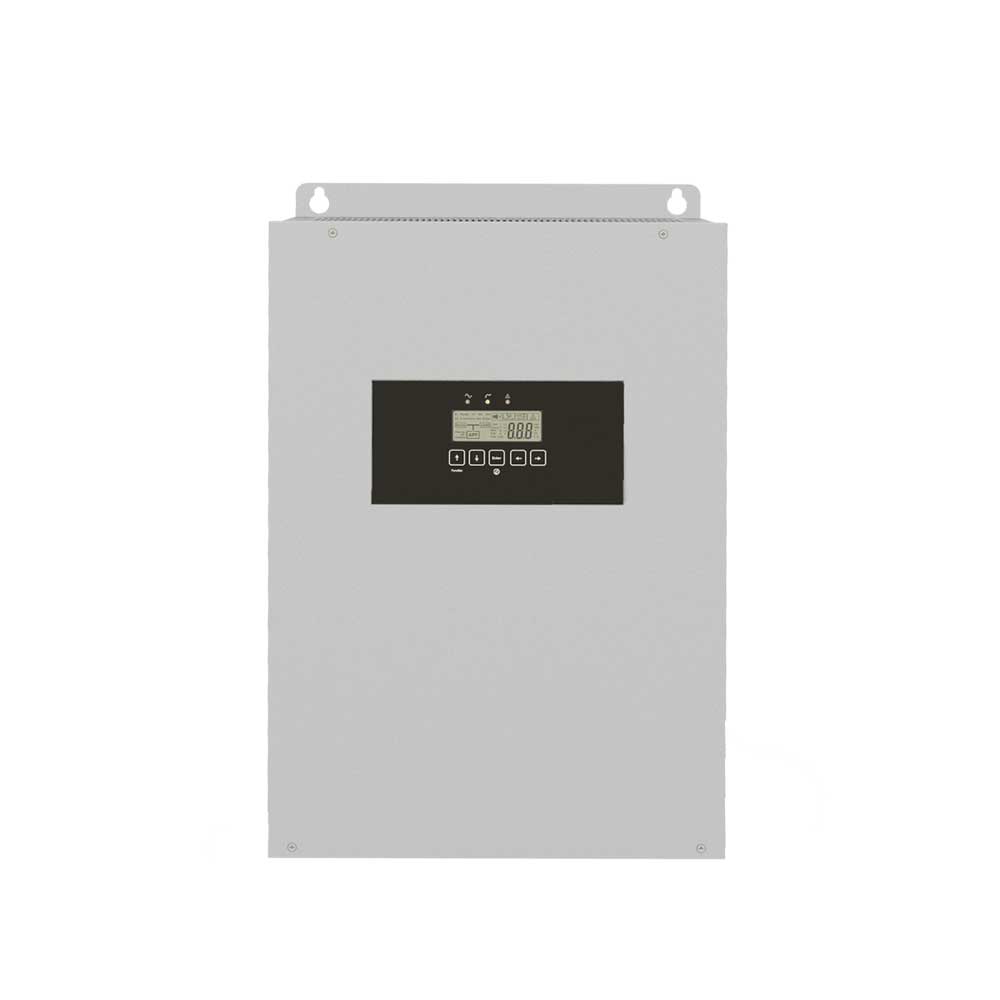

ESP – Monolithic

MAXIMUM ACTIVE HARMONIC AND POWER FACTOR COMPENSATION

It guarantees the lowest installation and operating cost, maximum performance and expected life of battery systems due to the voltage equalization function between individual monoblocks.

Perfect for:
Medium voltage substation
Applications industrial
Data centers
Installations Large battery
Critical buildings
Monitoring
Request information

Resources:

Features
  • Active Energie filters with monolithic structure are the most economical and effective solution to compensate for power factor and harmonic distortions from loads.
  • Versatile due to high current rating and parallel connection capability.
  • Maximum performance with 3-level DSP technology.
  • Space optimization through compact design with high power density.
  • Multi-purpose: one model covers all three-phase systems (3-wire or 4-wire).
  • Compensation of all harmonics (up to the 51st) with response time less than 1 ms.
  • No overload effect.
  • Selective mode that allows you to select the harmonics to be compensated.
  • Phase balancing of three-phase loads.
  • Possibility of installation in open or closed loop.

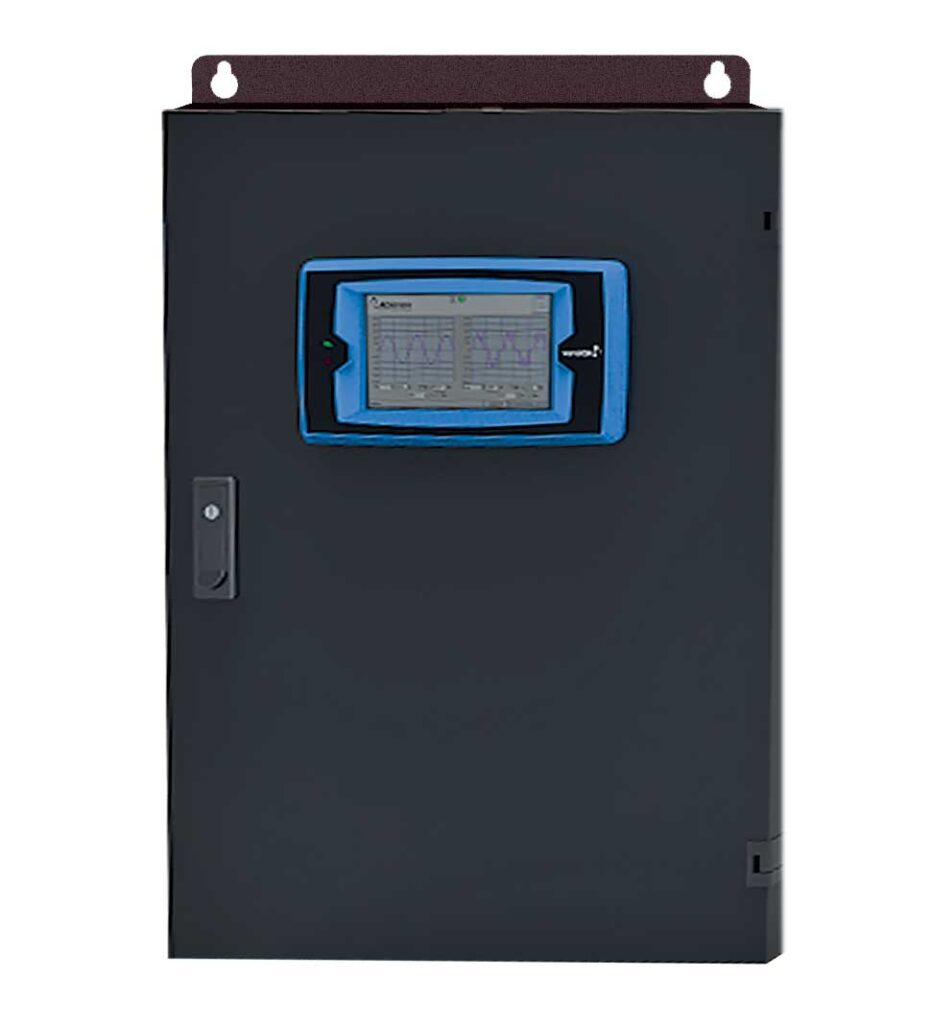

  • All parameters under control thanks to the 7 “color touch screen display that allow viewing: voltage and current waveform, frequency spectrum, parameters and events.
  • Events and parameters can be downloaded to a removable SD card.
  • Advanced communication: dry contacts (1 In and 3 Out) input ,USB, RS485 ModBus, RJ45 Ethernet, e-mail alarm settable.
  • Ability to select multiple languages.
