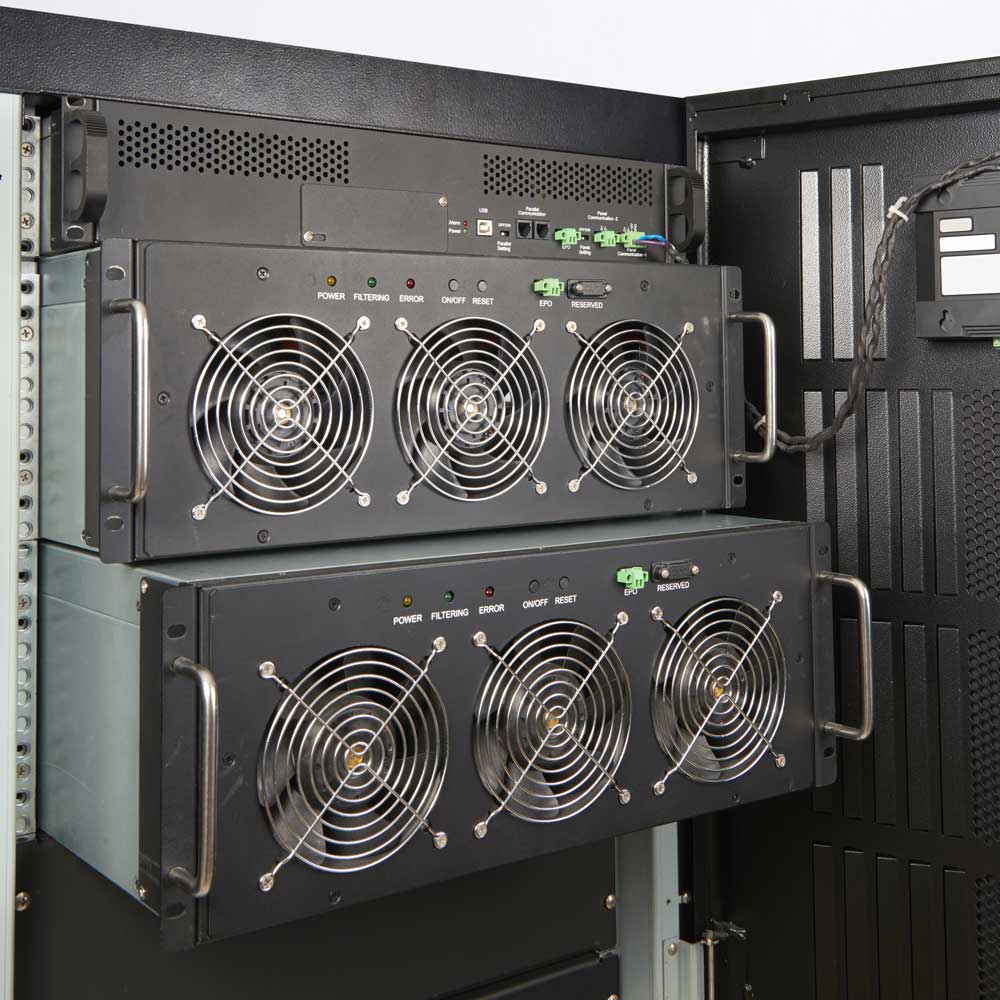

ESP – Modular
MAXIMUM ACTIVE FILTERING IN MODULAR VERSION
Ablerex’s Enersine active filters with modular structure are able to correct any kind of harmonic pollution, preserving the system from failure (e.g., on transformers, capacitors, etc.) while improving the power factor.
Perfect for:
Medium voltage substation
Applications industrial
Data centers
Installations Large battery
Critical buildings
Monitoring
Resources:
Features
- Highly scalable architecture with easy-to-install and hot-swappable power modules.
- Versatile due to modularity, high current rating, and the possibility of parallel connection up to 1920A.
- Enersine is available in two versions, 4 or 6 modules, 60A or 80A that can also be used in a mixed configuration within the same system.
- Maximum performance with 3-level DSP technology.
- Space optimization through compact design with high power density.
- Multi-purpose: one model covers all three-phase systems (3-wire or 4-wire).
- Compensation of all harmonics (up to the 51st) with response time less than 1 ms.
- No overload effect.
- Selective mode that allows you to select the harmonics to be compensated.
- Phase balancing of three-phase loads.
- Possibility of installation in open or closed loop.
- One control module manages up to 8 power modules
- All parameters under control thanks to the 7″ color touch screen display that allows viewing: voltage and current waveform, frequency spectrum, parameters and events.
- Events and parameters can be downloaded to a removable SD card.
- Advanced communication: dry contacts (3 in and 1 out), USB, RS485 Modbus, RJ45 Ethernet, programmable email alarm.
